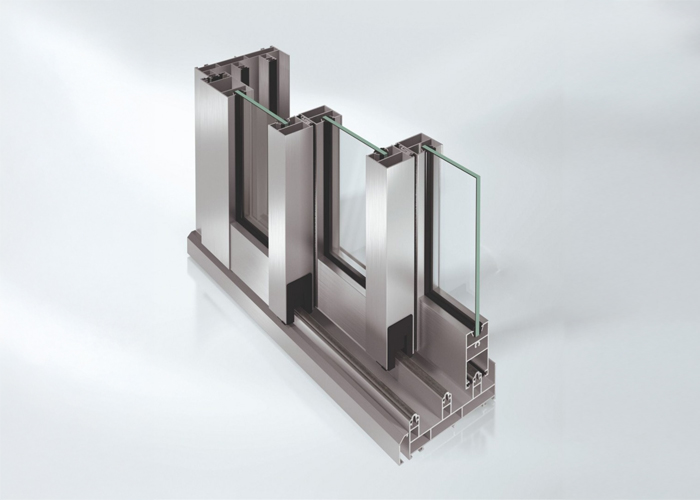

Schüco ASS 39 PD.NI

The Schüco ASS 39 PD.NI is an advanced aluminium sliding system with a concealed outer frame, offering architects and contractors an unparalleled combination of maximum transparency and seamless indoor-outdoor integration. Engineered for precision, it accommodates expansive vent dimensions of up to 2,000mm in width and 3,400mm in height, supporting glass thicknesses of up to 32mm while ensuring smooth manual operation with an integrated retaining catch. With an innovative removable roller profile and flexible fabrication options, including T-joint or mitre-cut assembly, this system simplifies installation without compromising on structural integrity or design elegance.

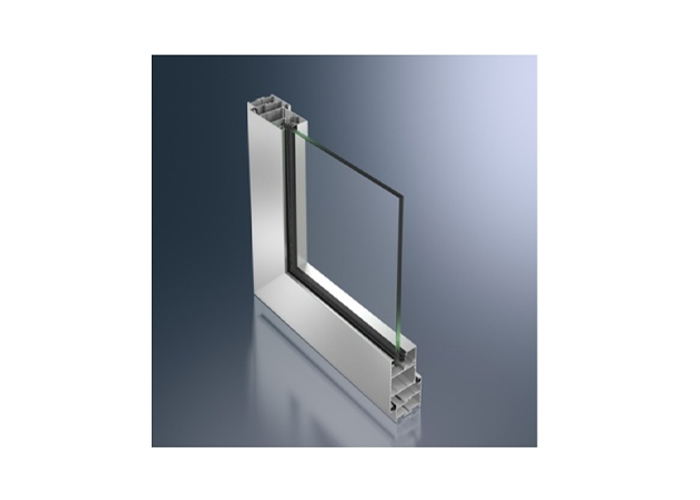

Schüco ADS 50.NI

The Schüco ADS 50 NI is a refined aluminium door system with a minimal basic depth, featuring a continuous leaf profile and a sleek 147 mm face width that enhances modern architectural aesthetics. Designed for seamless integration, it is fully compatible with Schüco Façade Systems and AWS series, optimizing component efficiency while simplifying logistics and installation. With an adjustable sill and a precision-engineered, three-dimensionally adjustable barrel hinge, this system ensures both structural flexibility and long-term durability for high-performance building applications.

Schüco TropTec™ AW 40.NI

The Schüco TropTec™ AW 40.NI is a high-performance, non-insulated aluminium window system with a sleek 74mm face width, offering architects and contractors a versatile solution for outward-opening designs. Engineered with a robust 40mm basic depth, it accommodates multiple configurations—including projected top-hung, side-hung, and double-vent options—while supporting maximum dimensions of up to 2400mm in height and 1500mm in width. With advanced concealed fittings, flexible glazing options from 4mm to 26mm, and seamless façade integration capabilities, this system ensures both aesthetic refinement and long-term structural reliability.

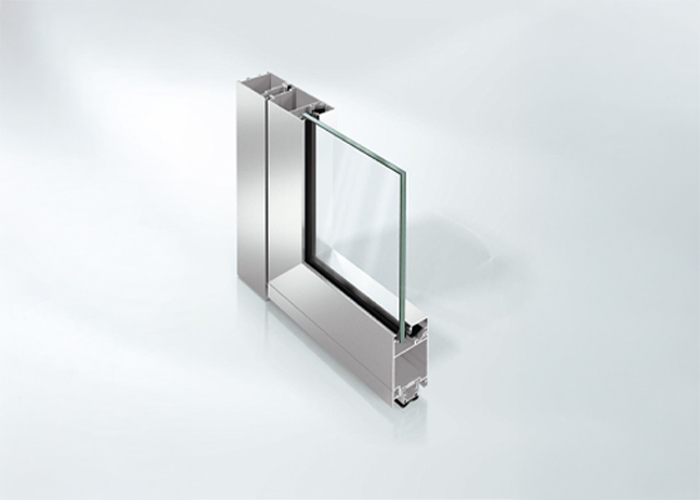

Schüco ADS 65

The Schüco ADS 65 is a premium aluminium door system that combines advanced thermal performance with a sleek 147 mm face width, offering a U-value as low as 2.2 W/(m²K) for enhanced energy efficiency. Designed for high-security applications, it is burglar-resistant up to RC3 (WK3) and endures up to 500,000 test cycles, ensuring exceptional durability in both residential and commercial projects. Seamlessly integrating with Schüco Façade and AWS systems, this door solution optimizes component efficiency while featuring an adjustable sill and precision-engineered barrel hinges for superior installation flexibility.

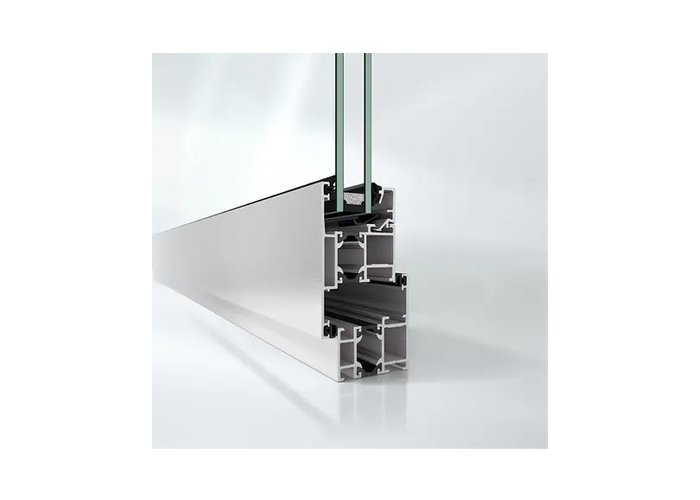

Schüco AWS 50

The Schüco AWS 50 is a refined aluminium window system with a 50mm basic depth, offering a balance of thermal efficiency and structural versatility through its wide insulation zone and narrow face widths starting from 51mm. Designed for both inward and outward-opening applications, it supports concealed Schüco AvanTec fittings for loads up to 160 kg and achieves burglar resistance up to WK2, ensuring security without compromising on aesthetics. With multi-color profile options and seamless compatibility with the Schüco ADS door range, this system provides architects and contractors with a highly adaptable solution for modern façade designs.

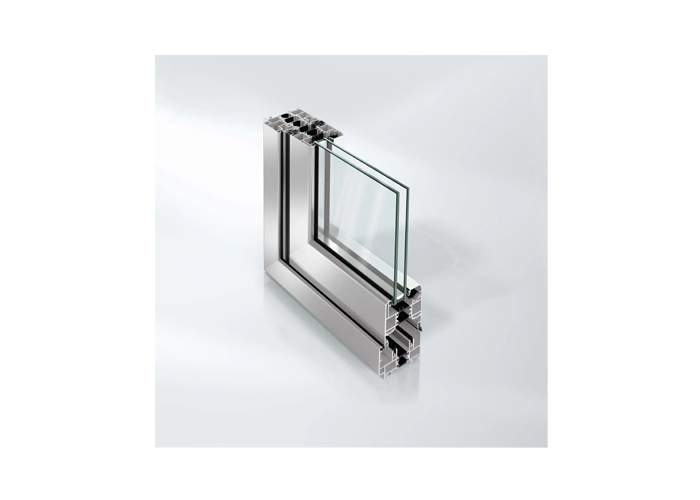

The Schüco AWS 60

The Schüco AWS 60 is a sophisticated aluminium window system with a 60mm basic depth, offering exceptional thermal insulation with a Uf value as low as 1.7 W/(m²K) in its HI variant. Engineered for both inward and outward-opening applications, it features narrow face widths starting from 51mm, supports Schüco AvanTec concealed fittings up to 160 kg, and provides burglar resistance up to RC2 (WK2) for enhanced security. With a broad range of profile designs, multi-color options, and seamless compatibility with the Schüco ADS door range, this system delivers both architectural flexibility and long-term performance.

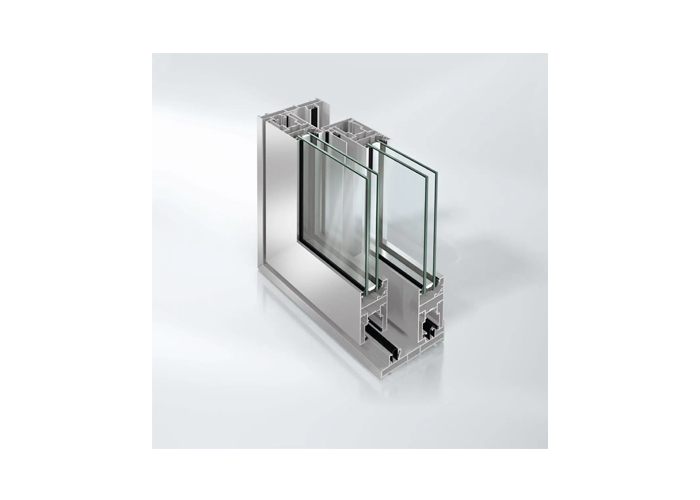

Schüco ASS 50.NI

The Schüco ASS 50.NI is a high-performance aluminium sliding door system with a 50mm vent frame depth, offering expansive panel sizes up to 3,000mm x 3,000mm while maintaining effortless, near-silent operation. Designed for both aesthetic refinement and security, it features a sleek flat outer frame, accommodates glazing thicknesses from 8mm to 32mm, and achieves RC2 (WK2) burglary resistance. With precision mitre-cut frames and optimized glazing components, this system ensures seamless installation and long-term structural integrity, making it an ideal choice for premium architectural applications.

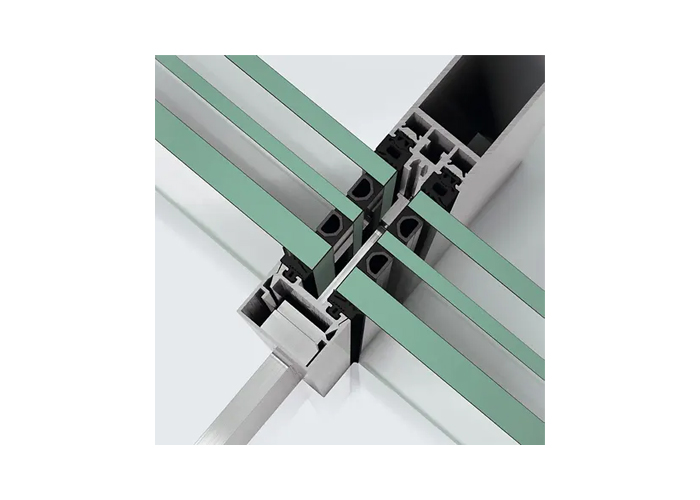

Schüco FWS 35 PD

The Schüco FWS 35 PD is a cutting-edge aluminium façade system with an ultra-slim 35mm face width, delivering a sleek aesthetic without compromising structural integrity. Designed for superior thermal performance, it offers passive house certification with Uf values as low as 0.89 W/(m²K) and supports triple glazing up to 50mm for enhanced energy efficiency. With advanced isolator technology, innovative drainage solutions, and seamless integration of Schüco AWS window units, this system ensures effortless installation and long-term reliability for high-end architectural projects.

The Schüco ASS 70 FD

The Schüco ASS 70 FD is a premium folding door system with an elegant 120mm face width, offering seamless transitions between indoor and outdoor spaces. Engineered for both residential and commercial applications, it features watertight performance up to class 9A, a 90° openable corner for design flexibility, and glazing options from 6mm to 45mm. With an easy-access threshold, customizable opening directions, and a secure RC2 (WK2) rating, this system delivers exceptional functionality, aesthetics, and durability for high-end architectural projects.
